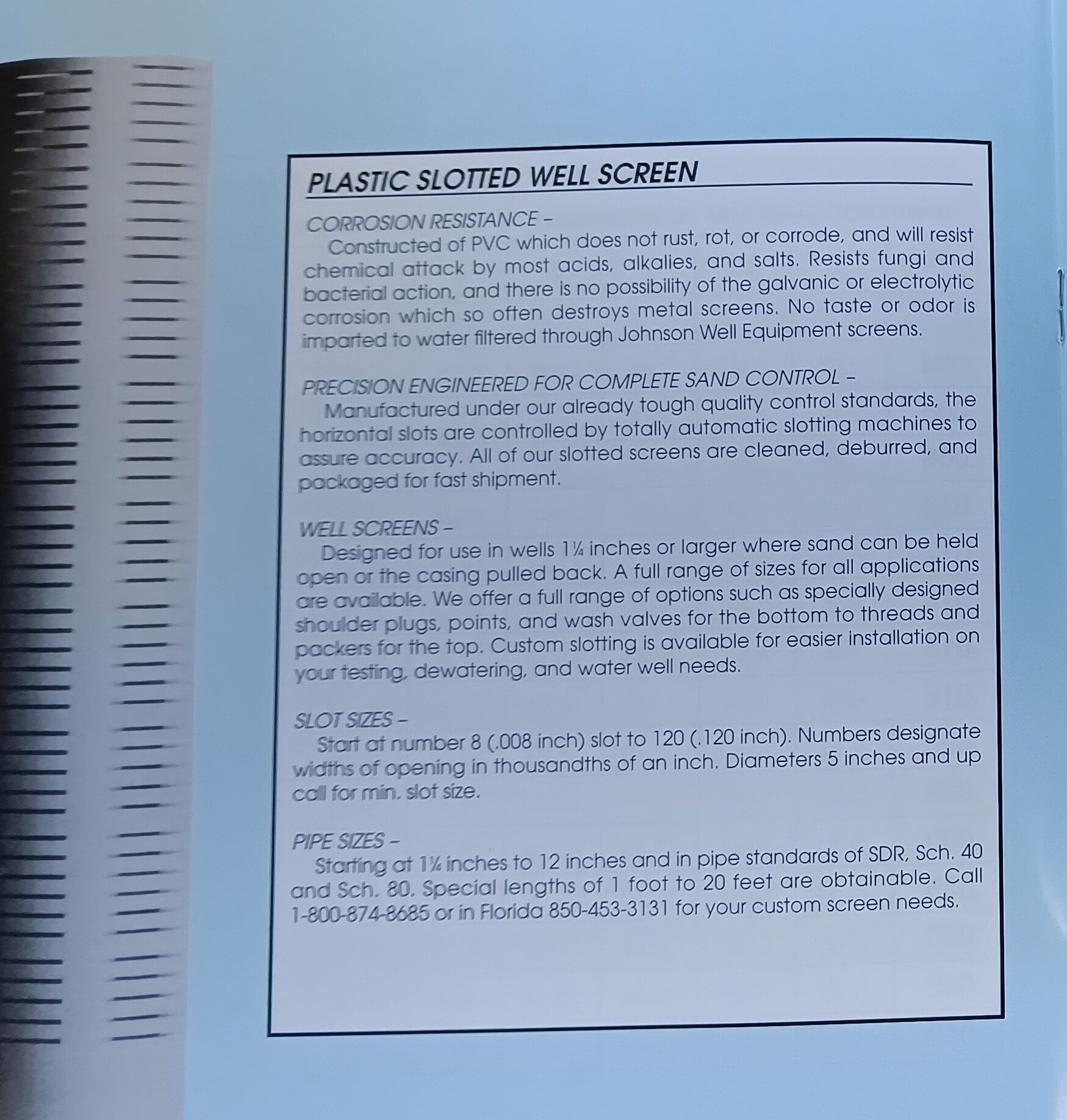

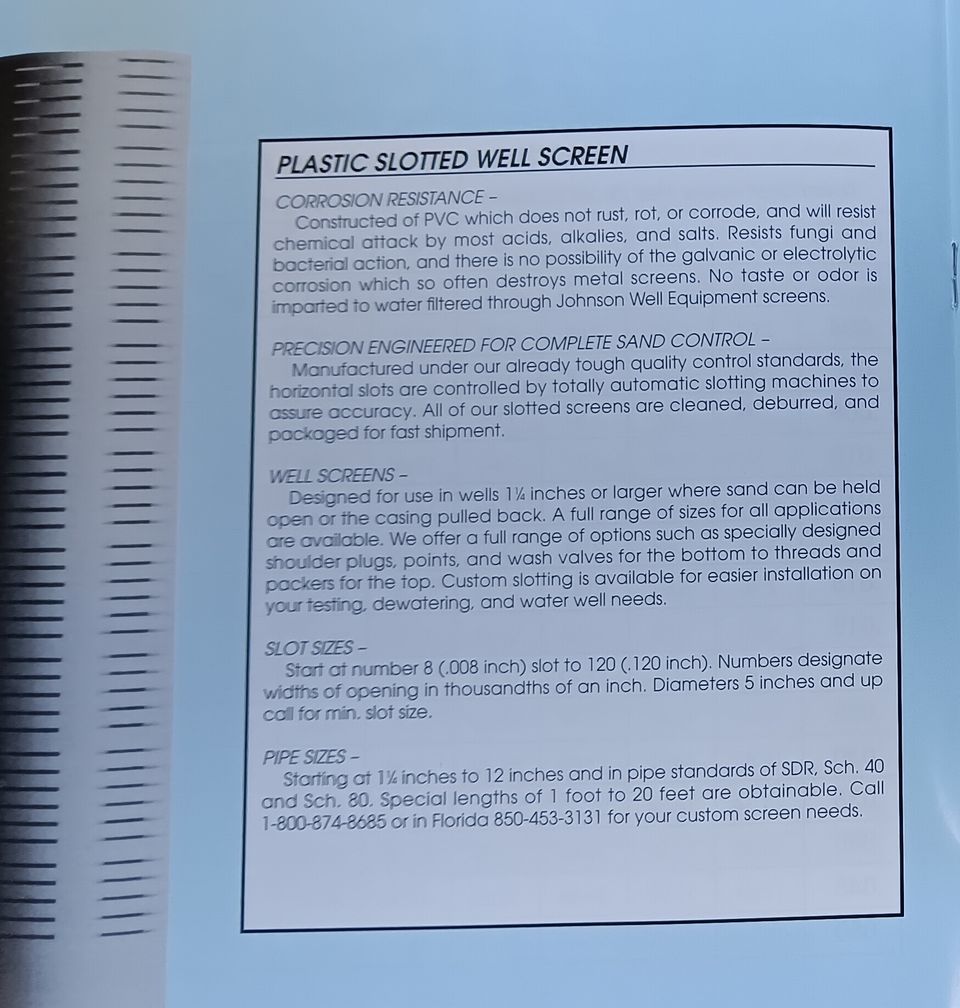

Precision Engineered for Complete Sand Control

Manufactured under our already tough quality control standard, the horizontal slots are controlled by totally automatic slotting machines to assure accuracy. All of our slotted screens are cleaned, deburred and packaged for fast shipment.

Well Screens

Designed for use in wells 1 1/4 inch or larger where sand can be held open or the casing pulled back. A full range of sizes for all applications are available. We offer a full range of options such as specially designed shoulder plugs, points and wash valves for the bottom to threads and packers for the top. Custom slotting is available for easier installation on
your testing, dewatering and water well needs.

Slot Sizes

Start at number 8(.008 inch) slot to 120(.120 inch). Numbers designate width of opening in thousandths of an inch.

Pipe Sizes

Starting at 1 1/4 inches to 12 inches and in pipe standards of SDR, Sch. 40 and Sch. 80. Special lengths of 1 foot to 20 feet are obtainable.

Call 1-800-874-8685 for your custom screen needs
